191-41031-A002

Precio habitual$899.99
/
Los gastos de envío se calculan en la pantalla de pagos.

  • En stock
  • Inventario en el camino

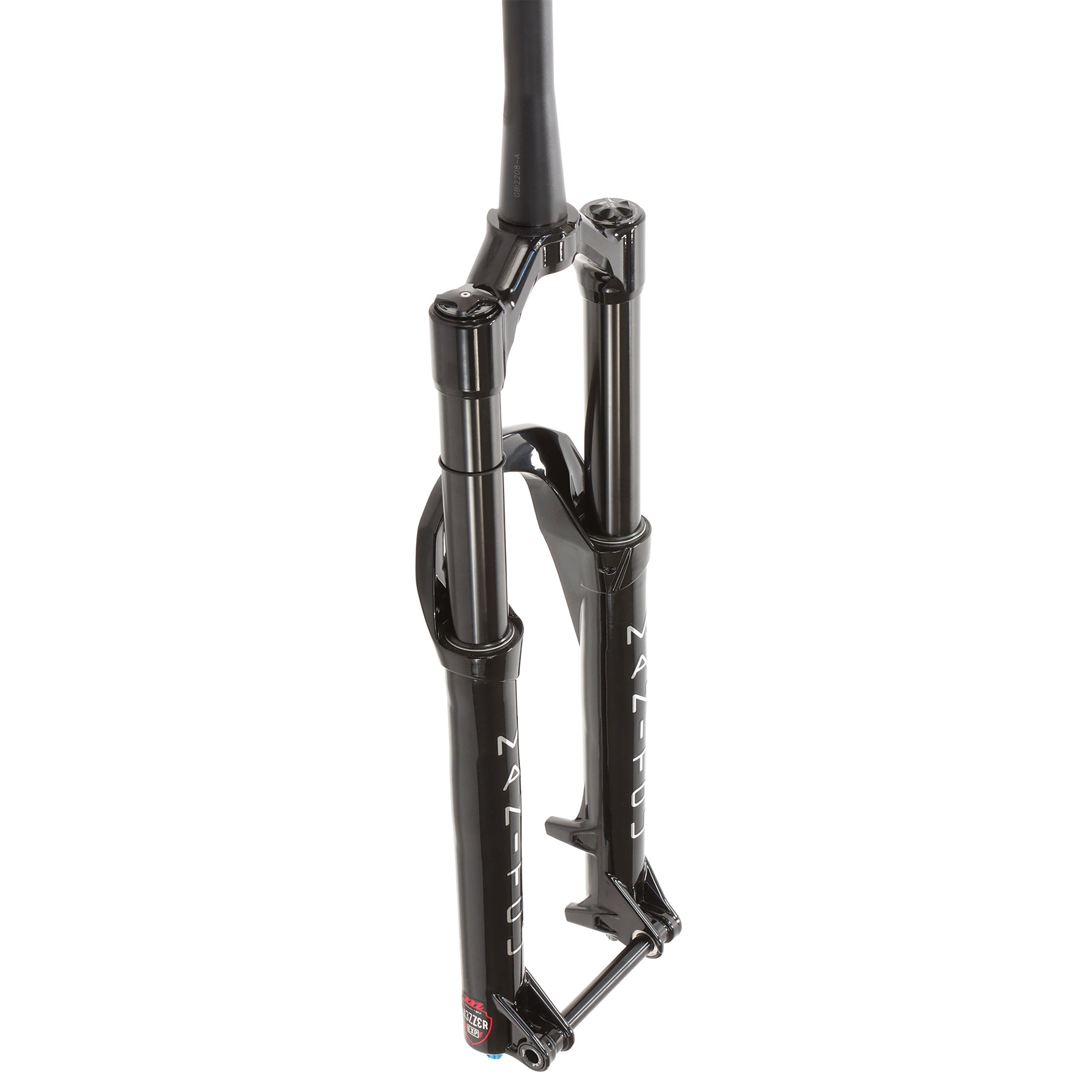

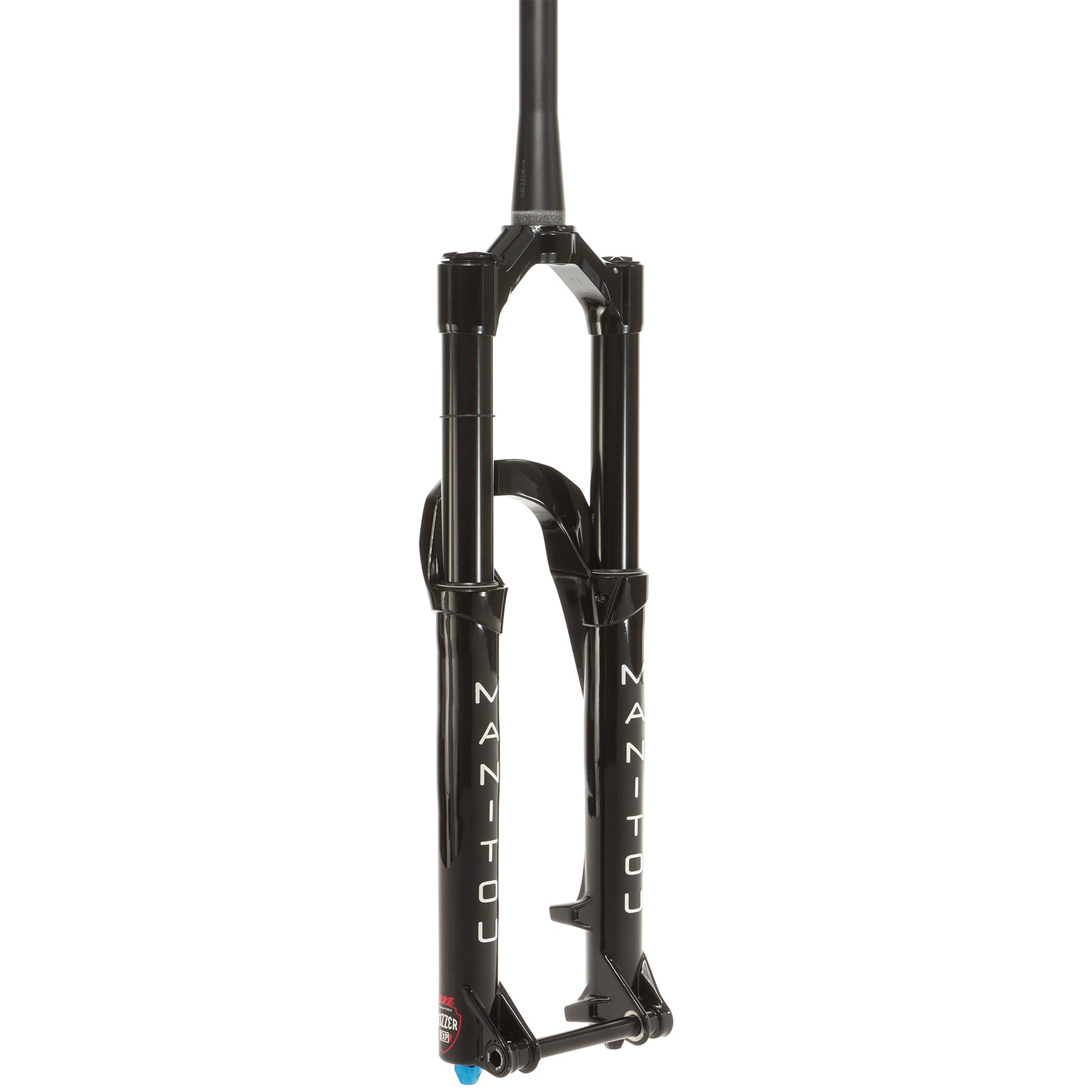

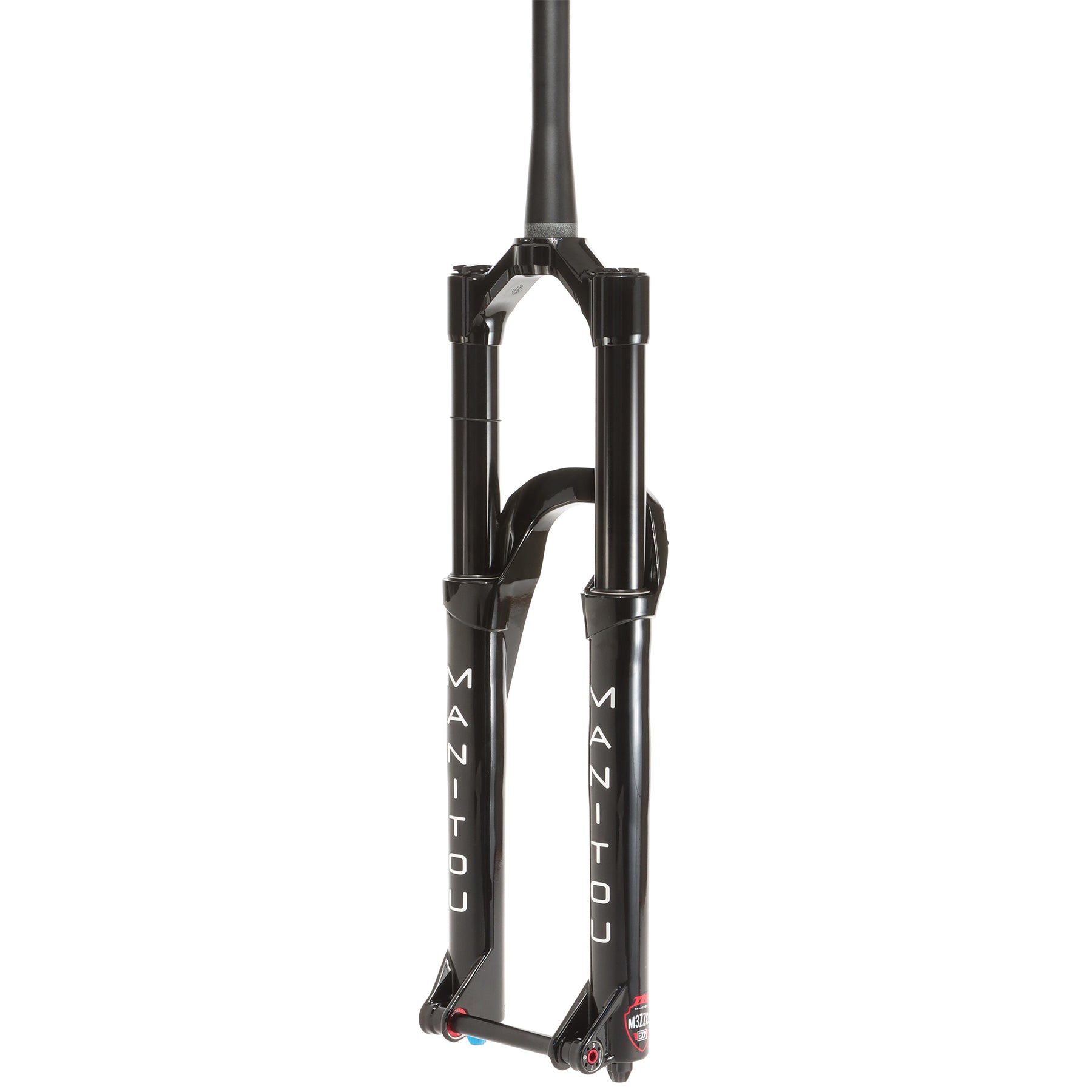

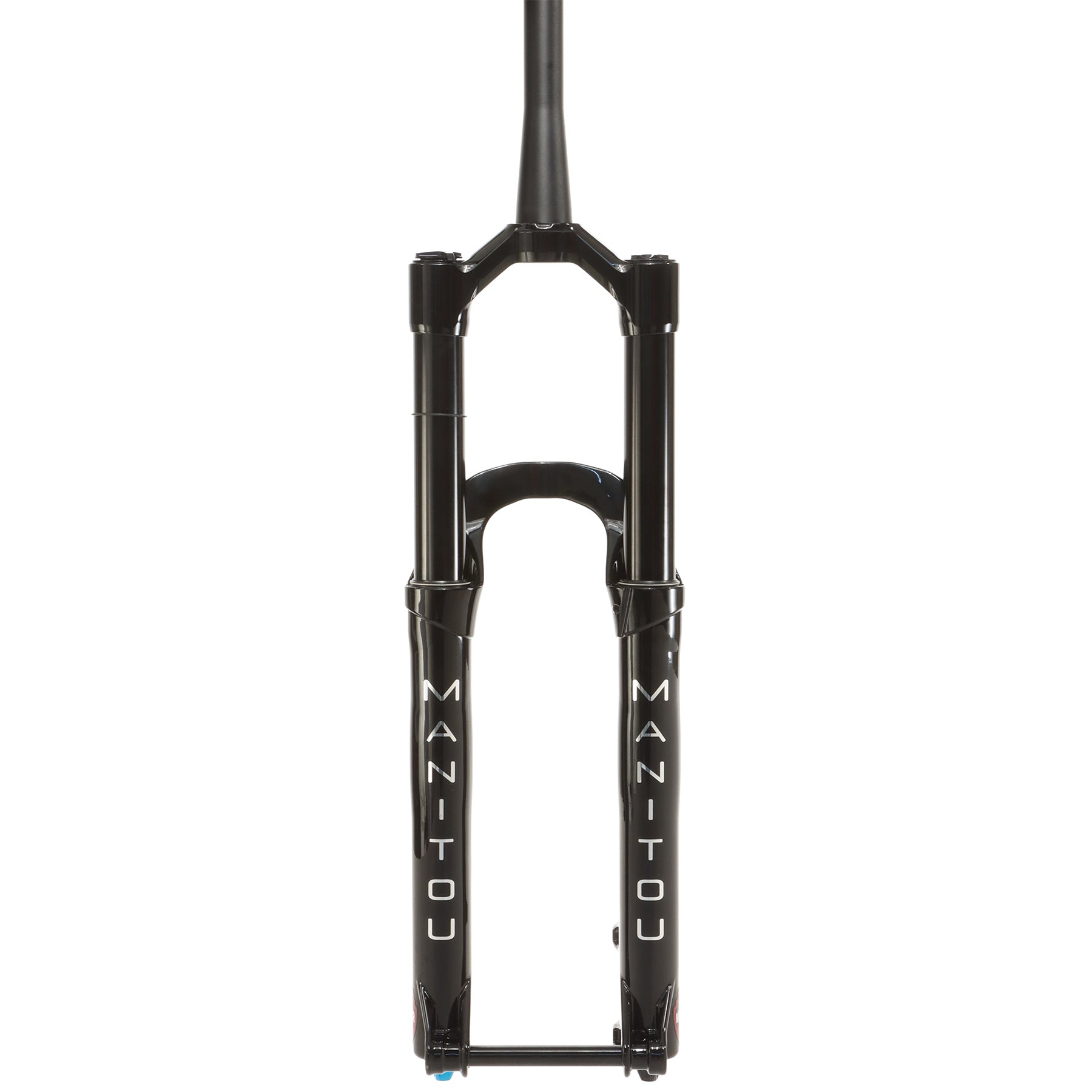

Core Mezzer performance with race-proven capability. The Mezzer Expert delivers the same physics-driven chassis design and suspension performance that define the Mezzer lineup in a package built for riders seeking uncompromising trail and enduro capability. Sharing the same lightweight 37mm chassis architecture and Reverse Arch design as the Mezzer Pro, the Expert provides exceptional front-end stiffness, smooth small-bump sensitivity, and composed mid-stroke support across demanding terrain. Optimized for aggressive trail riding and enduro racing alike, the Mezzer Expert offers reliable performance, confident handling, and the proven tunability riders expect from Manitou suspension.

•Travel Spacers
•Fender

•Updated chassis - crown machining reduces weight, casting updates with new bushing bore machining process, drop out machining and arch ribbing improves casting stiffness to improve bushing alignment to reduce binding and create a smoother fork throughout the travel.
•Updated rebound tune - improved traction and reduces rider feedback.
•Updated casting volume and bottom out system - allow full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring.
•Updated air volumes for more linear spring curve and improved small bump compliance.

Specifications

WHEEL SIZE 29"
WEIGHT 2050g
OFFSET 44mm
TRAVEL 140-170mm
AXLE TO CROWN 140mm = 551mm, add 10mm of height per 10mm of travel
SPRING Expert Air w/ IVA
COMPRESSION DAMPING VTT-6 Position
REBOUND DAMPING Half Cartridge adjustable TPC
ADJUSTMENTS Air, Air Volume, Rebound, 6-position Compression
STEERER 1.5" Tapered
CROWN Forged Aluminum, Deep Hollow Bore w/ external machining Gloss Black
LEG DIAMETER 37mm
LEG MATERIAL 7000- Series Butted Wall Aluminum
BRAKE Post Mount 180mm (223mm Max)
AXLE 15mm x 110mm Hexlock SL2
MAX TIRE SIZE 69mm w/ Fender
INCLUDED TSR, Fender Kit, Travel Spacers
ASTM RATING 5
GVWR 136kg ASTM 5 / 150kg ASTM 4
OPTIONS IRT
