292-42603-K001

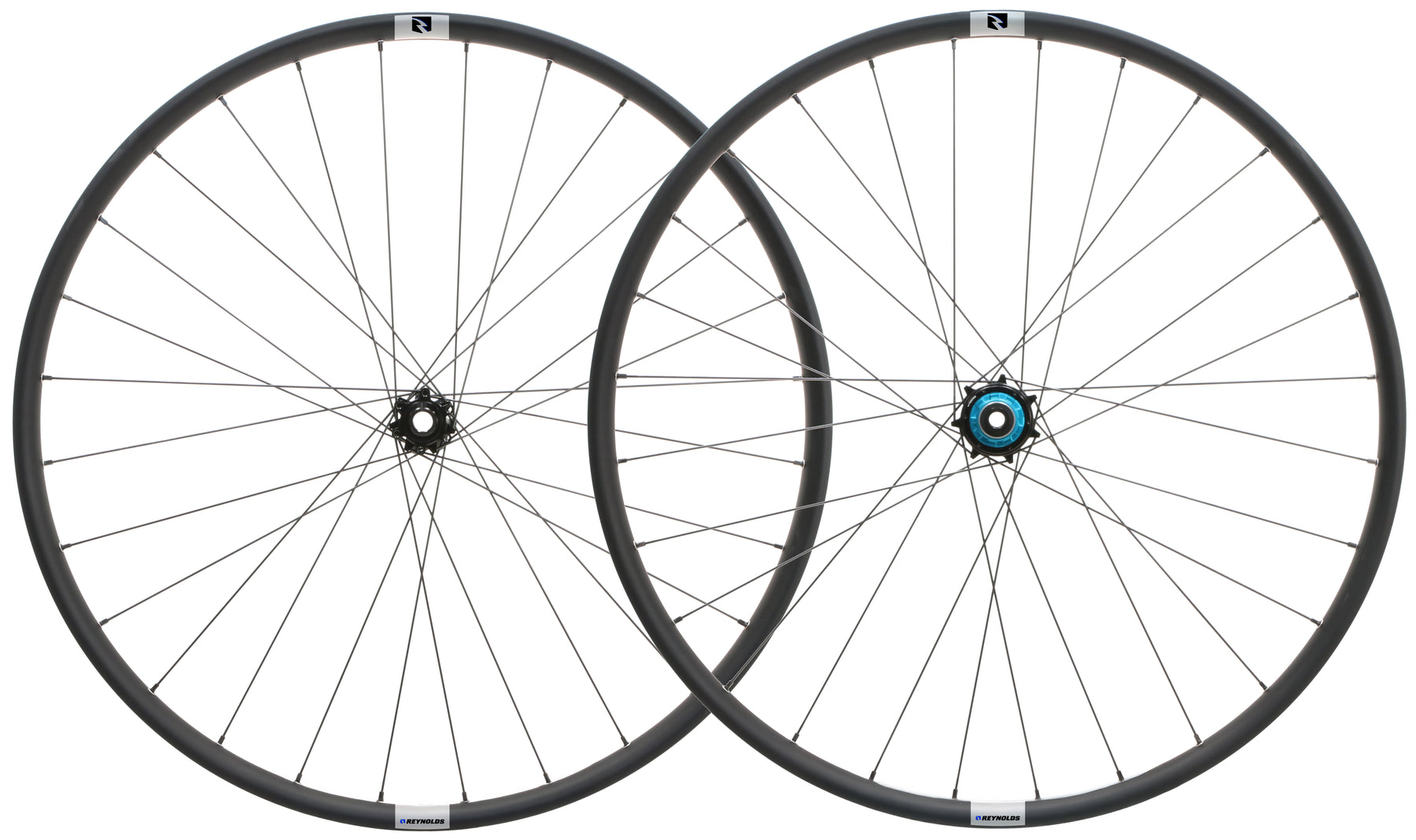

Versatility, durability, and performance designed for the gravel adventurer. Proven rim technology, wide tubeless channel, and easy tubeless setup available in 700c.
• Featuring SUNringlé 6061 Aluminum, welded joint, and sandblast matte black finish
• Optimized 26mm inner width with pinch flat and dent resisting sidewall
• Tubeless Ready Profile for a no-burp tire fit and ease of inflation
• Wheelsmith DB14 Double Butted Spokes

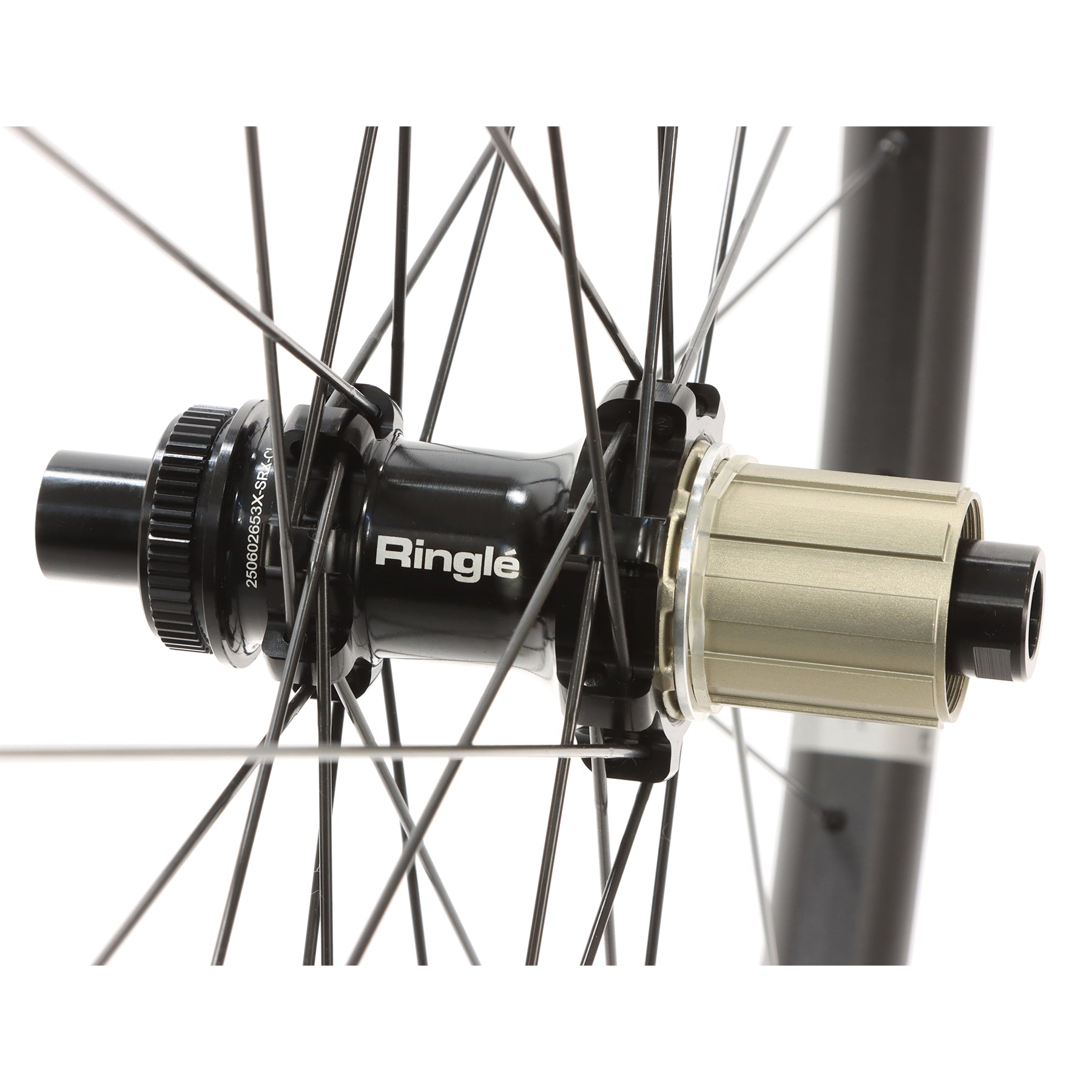

• Ringlé SRX hub, CNC machined with 12° engagement
• Outer Rim Width: 30mm
• Internal Rim Width: 26mm
• Rim Depth: 20.25mm
• Rim Material: 6061 Aluminum
• Rim size: 700c
• Hub: Front Ringlé SRX| Rear Ringlé SRX
• Spoke Type: Wheelsmith DB14
• Nipple: Wheelsmith Brass
• Engagement: 12°
• Spoke Count: 28 Front, 28 Rear
• Brake Interface: Centerlock
• Freehub: Shimano HG-R, XDR Shimano MS available
• Weight: 780 (front), 894g (rear), 1674g (set)
Tubeless Tape (Installed, Tubeless Valves, Alternate FHB)
Reynolds is confident that we build the best rim and wheel systems in the cycling industry. All of our wheels are produced in our own facility, by our own staff, to our strict engineering specifications. Therefore, we confidently offer a lifetime warranty to the original owner of Reynolds rims.
